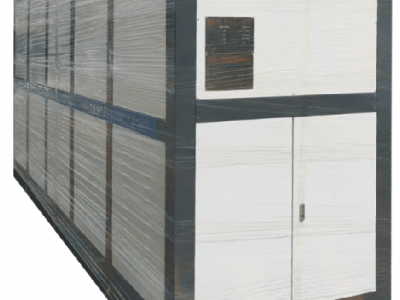

ZKQ型水管式低氮冷凝真空熱水鍋爐

容      量：0.35MW-2.8MW

熱 效 率：≥95%

適用燃料：天然氣、輕油、重油、煤氣等

應用范圍：工廠、醫院、酒店、學校、企事業單位等

簡      介：1、水管真空鍋爐采用煙氣橫向沖刷，鍋爐水循環好，蒸發效率高，極大的強化了煙氣傳熱。 2、全預混燃燒技術，爐膛尺寸小，有效縮小鍋爐體積，實現超低氮排放，NOx排放小于30mg/Nm3 3、爐體在微負壓狀態下運行，外界壓力大于內部，安全系數高，免報批、免監檢、不用辦理鍋爐使用登記手續。

力威水管式真空熱水鍋爐特點
Advantages of low nitrogen condensation technology
1、水管真空鍋爐采用煙氣橫向沖刷，鍋爐水循環好，蒸發效率高，極大的強化了煙氣傳熱。
2、全預混燃燒技術，爐膛尺寸小，有效縮小鍋爐體積，實現超低氮排放，NOx排放小于30mg/Nm3
3、爐體在微負壓狀態下運行，外界壓力大于內部，安全系數高，免報批、免監檢、不用辦理鍋爐使用登記手續。

4、一機多用，可以一臺鍋爐同時提供取暖水、生活熱水、泳池加熱等。
5、燃燒器、鍋爐本體、換熱器、冷凝器集成設計，結構緊湊，安裝便捷，操作、維護方便，節省投資及占地面積，系統簡單，效率高，運行更節能。
6、相變換熱，熱媒水經過軟化，一般不需要更換和補充，解決常規鍋爐結垢、氧腐蝕等問題，使用壽命長。
7、采用爐體超壓保護、熱媒水和蒸汽超溫保護、循環水超溫保護和低溫保護等多重安全保護聯鎖，確保機組運行安全可靠。
8、采用微電腦可編程控制方式，自動化程度高、操作簡單、控制靈活，多功能觸摸屏，多窗口系統工況顯示，鍋爐運行狀態實時顯示。
9、鍋爐可模塊化組合，通過可視化智能軟件系統的控制，調整機組的整體供熱負荷，使鍋爐機組高效運行。
1.The water tube vacuum boiler adopts flue gas lateral flushing.good water circulation in the boiler, high evaporation efficiency,and greatly strengthens the flue gas heat transfer
2.Full premixed combustion technology,small furnace chamber size,effectively reduce the size of the boiler, to achieve ultra-low nitrogen emissions, NOx emissions less than 30ma/Nm
3.The funace operates under a slight negative pressure, the external pressure is greater than the internal,the safety factor is high, no approval required, no supervision is required. no registration of boiler use required
4.One machine for mutiple uses,one boiler can provide heating water,domestic hot water,pool heating,etc. at the same time
5.Bumer, boiler body. heat exchanger,condenser integrated design,compact structure,convenient installation, easyoperation and maintenance, saving investment and floor space,simple system,high efficiencymore energy efficient operation
6.Phase exchange heat, heat medium water after softening,generally do not need to replace and replenish,solve the conventional boiler scaling, oxygen corrosion and other problems, long service life
7.Multiple safety protection interlocks such as furnace overpressure protection,thermal mediurn water and steam overtemperature protection, circulating water overtemperature protection and low temperature protection are adopted to ensure safe and reliable operation of the unit.
8.Adopt microcomputer programmable control method, high degree of automation, simple operation, flexible control, multi-functional touch screen,multi-window system working condition display. real-time display of boiler running status
9. The boiler can be modularly combined and the overall heating load of the unit canbe adjusted through the control of the visual intelligent software system to make the boiler unit operate efficiently
